Features

• Measures for wave leakage and tests oven power
• 8 dipole sensors – allows detection of plane wave signals of any polarization
• Temperature compensation – accurate reading regardless of ambient temperature changes
• Compact, ergonomic design
• Low battery indication
• Analog Bar Graph
• Auto-zero

Accessories (Included)

• TX900
• 2 x 500 ml plastic beakers
• Spirit (alcohol)
• Glass thermometer
• Carrying case
• Battery (installed)

Specifications

• RF Power sensing range: 0 mW/cm2 → 10 mW/cm2
• Nominal detecting frequency: 2.45 GHz
• Display: 2-1/2 Digit LCD with 10 point bargraph display
• Power source: 9 Volt NEDA 1604A / IEC 6LR61 Battery
• Low battery: Approx. 6V
• Nominal current: 10 mA
• Sensor – source spacing: Circular – 5 cm
• Environmental: Indoor operation; below 6,562ft (2000m)
• RF Power sensing range: 0 to 10 mW/cm2
• Nominal detecting frequency: 2.45 GHz
• Calibration accuracy: ± 1dB in plane wave – circular polarization
• Response to step input: < 1 sec.
• Resolution: 0.1 mW/cm2

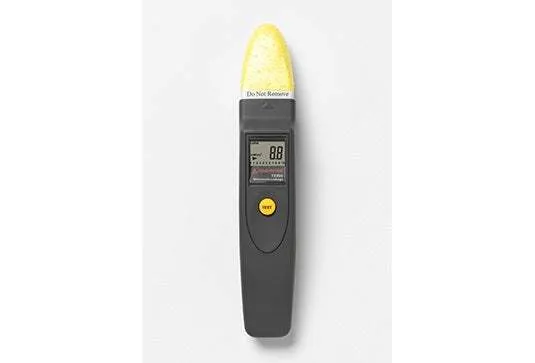

The Amprobe TX900 Microwave Leakage Detector has been designed to assist domestic and commercial appliance engineers with microwave ovens. The Amprobe TX900 can be used to verify if the oven operates in accordance with current standards and regulations.
