| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 1044705 |
| Body Style | Rectangular |
| Connection Type | M12 4-Pin |
| Dimensions | 23.8mm x 43.4mm x 33.6mm |
| Frequency, Switching | 400 Hz (with light/dark ratio 1:1) |
| Housing Diameter | M18 |
| Housing Material | Glass fiber reinforced ABS plasticplastic |
| Includes | Mounting nut M18 |
| IP Rating | IP67 |
| Light Source | LED (Average service life: 100,000 h at TU = 25 °C) |
| Maximum Operating Temperature | 50 C |
| Measurement Range | 0.1-3 m |
| Mounting Type | M18 Threaded |
| Operating Temperature, Maximum | 50 C |
| Operation | Dark-ON/Light-ON |
| Output | PNP |
| Output Current | 50 mA |
| Power Dissipation | < 20 mA (without load) |
| Protection Class | III (reference voltage: 50 V DC) |
| Sensing Mode | Retroreflective |
| Sensing Range | 0.1 m ... 3 m (PL80A) |
| Series | |
| Special Features | Polarisation filter |
| Supply Voltage | 10-30 VDC |
| Switch Style | Dark switching |
| Type | Retroreflective Sensors |
| Wavelength, Dominant | 660 nm |
| Weight | 0.014 kg, 0.03 lbs |
Overview

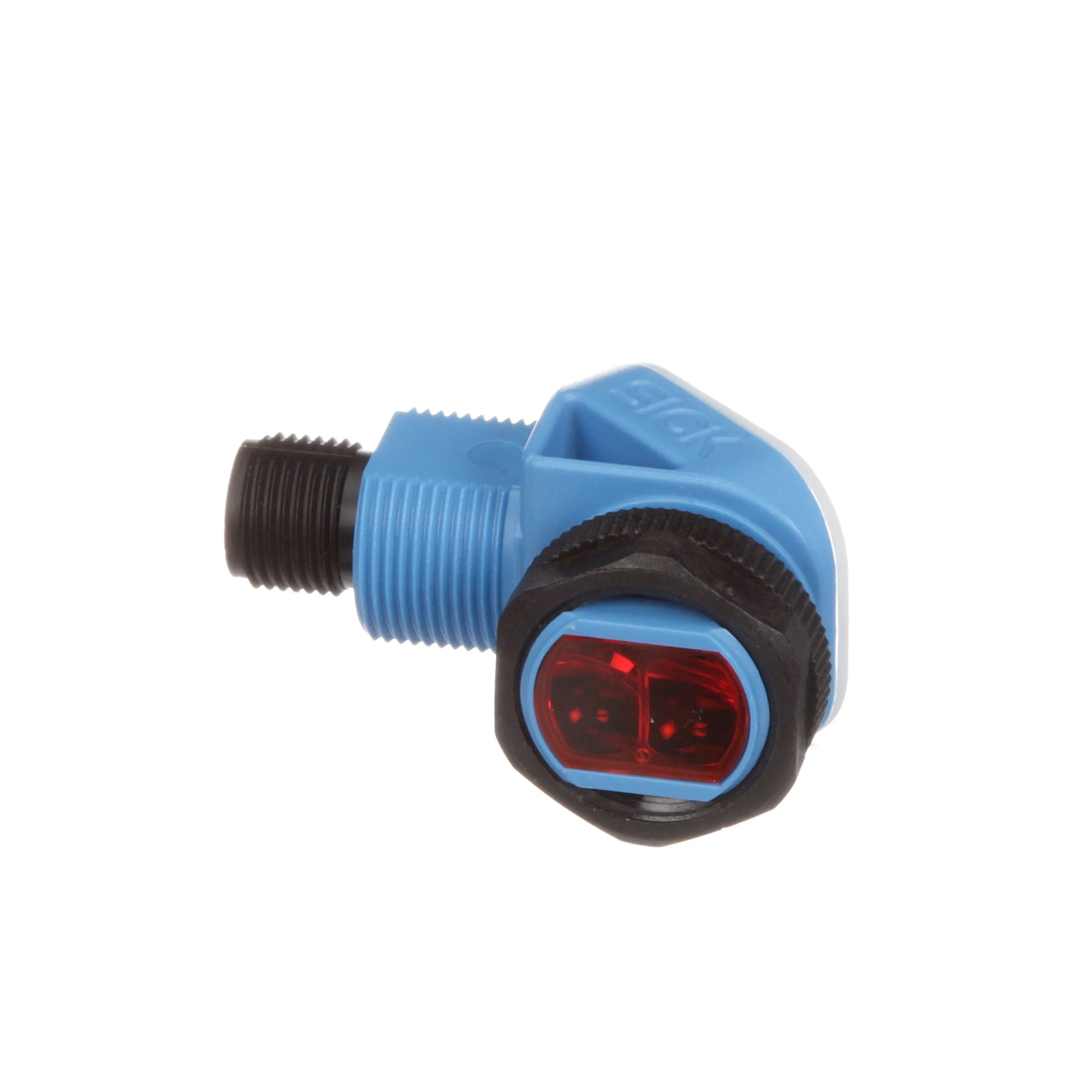

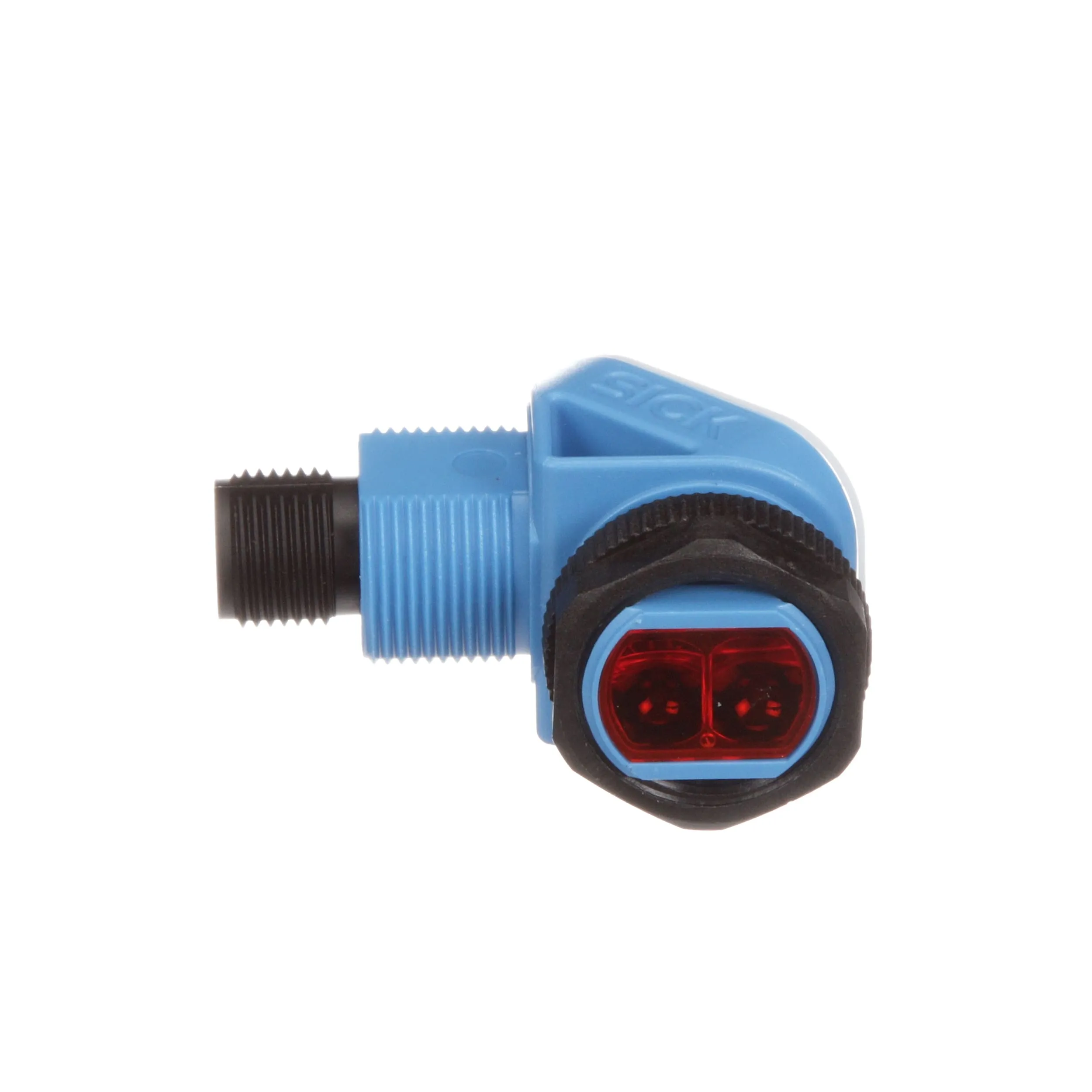

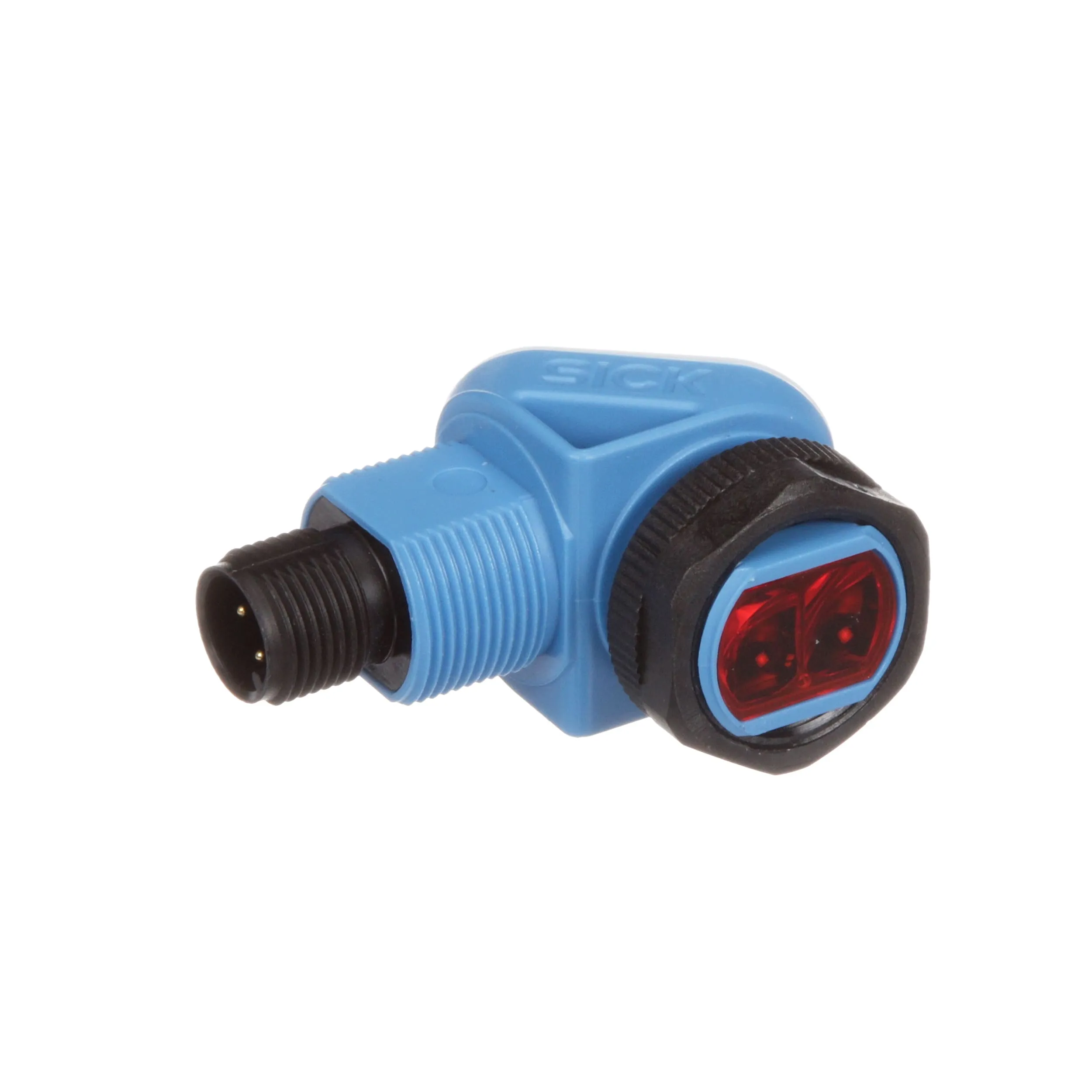

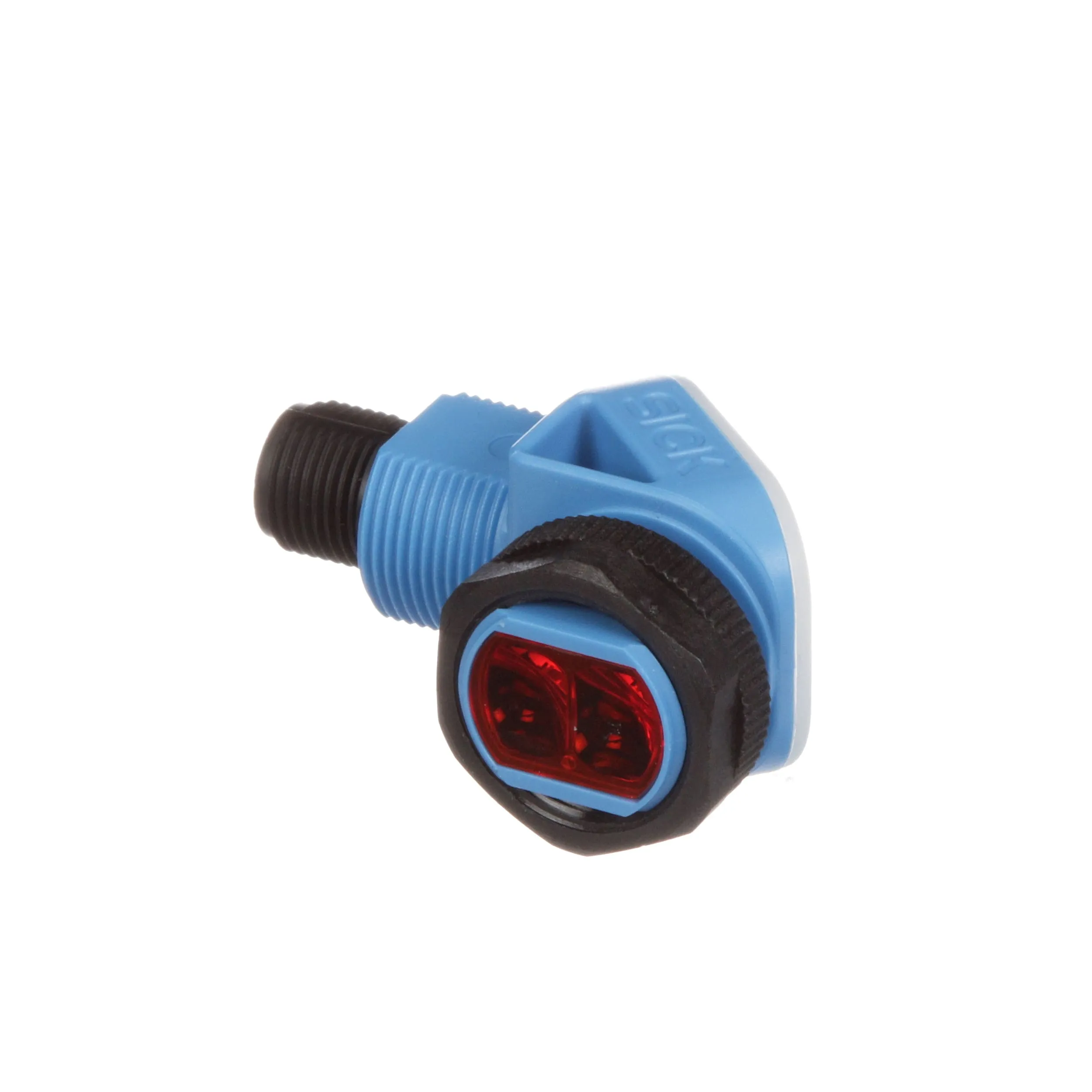

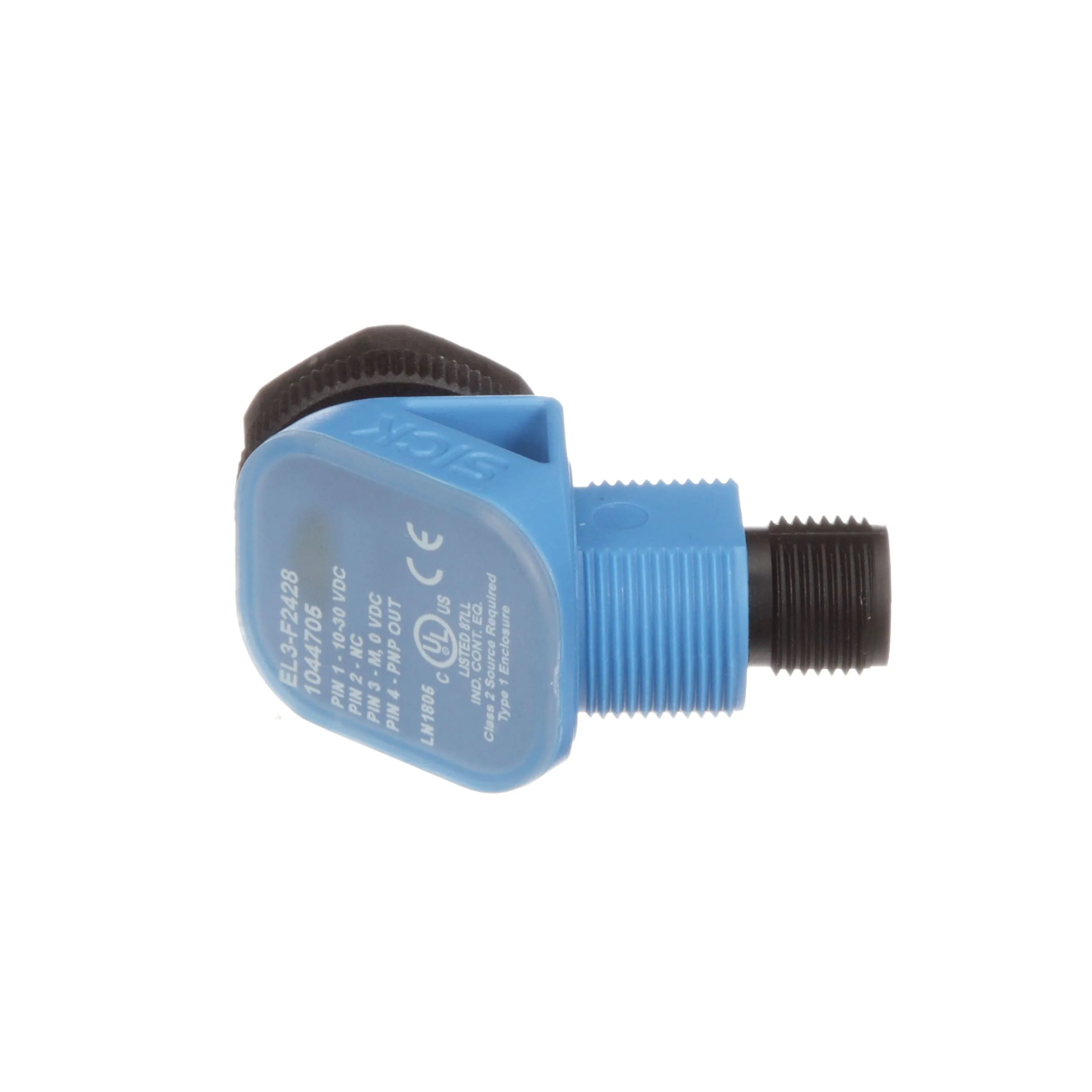

The industry-proven ELF-3 family of hybrid photoelectric sensors offers basic functions for presence detection applications. These low-cost sensors provide a variety of features that can be optimized for customers to reduce installation and procurement costs. They are ideal for standard, short-range applications, such as conveyor systems, vending machines, packaging lines, or other simple on/off applications. ASIC (application-specific integrated circuit) technology, which is proprietary to SICK, guarantees the best optical performance. ELF-3 sensors are available in background suppression, energetic and retro-reflective variants. The background suppression variant offers a 50 mm fixed sensing distance. The energetic variant has a 155 mm sensing range and the retro-reflective variant has a 5 m sensing range. A clear back cover provides highly visible power and status indication. These multi-functional sensors are able to integrate optical and electronic elements into different housings. The ELF-3 comes with integrated M18 threads for front and base mounting.
