Description

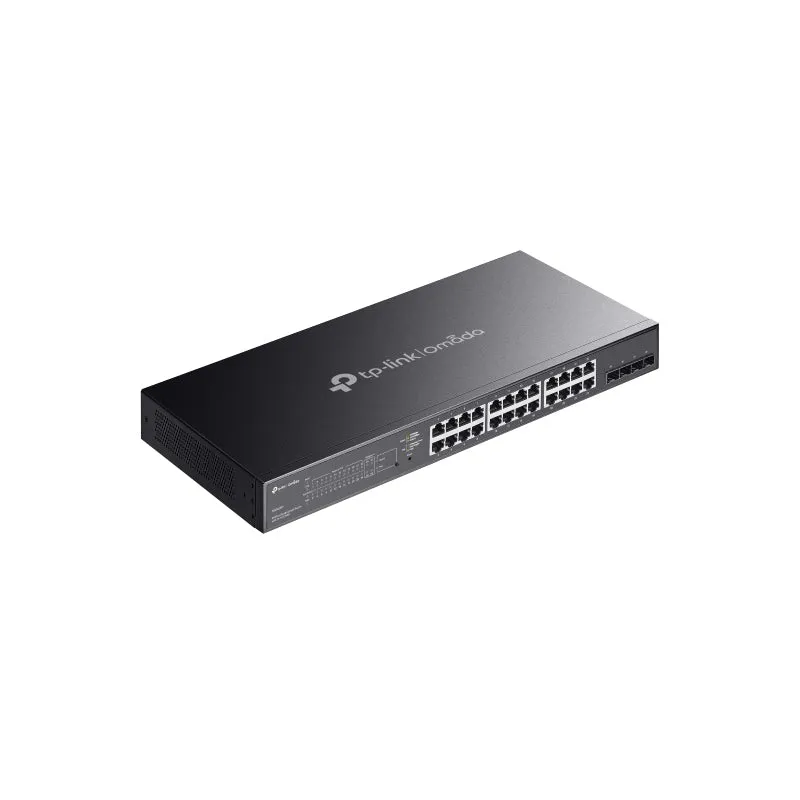

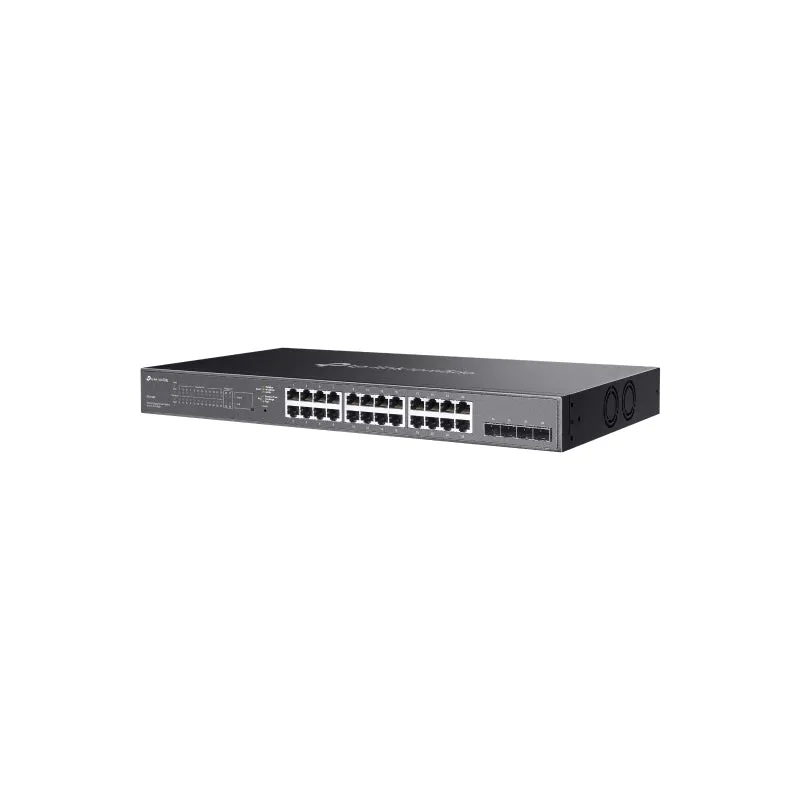

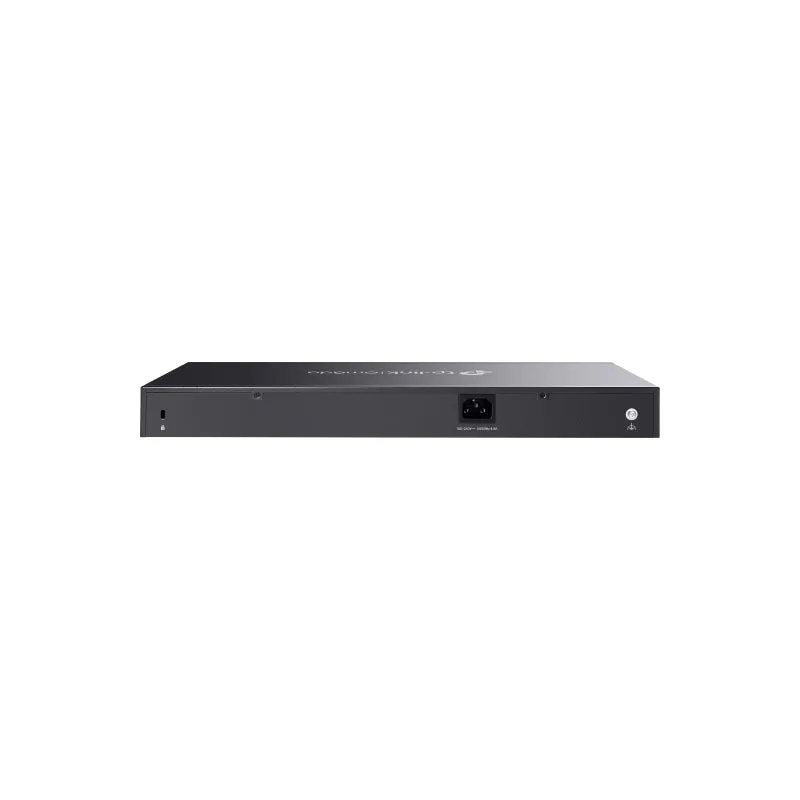

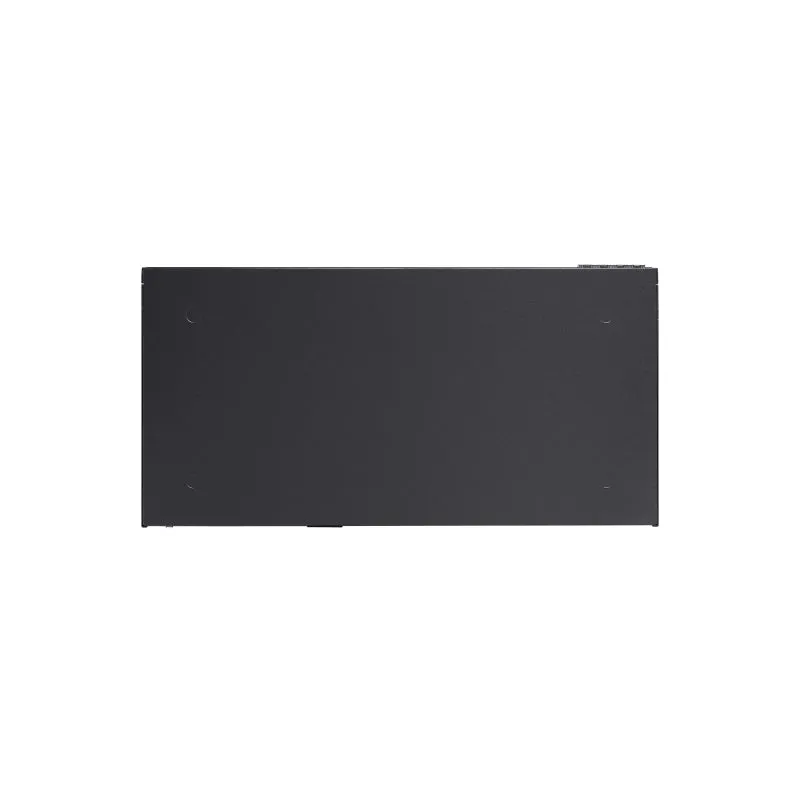

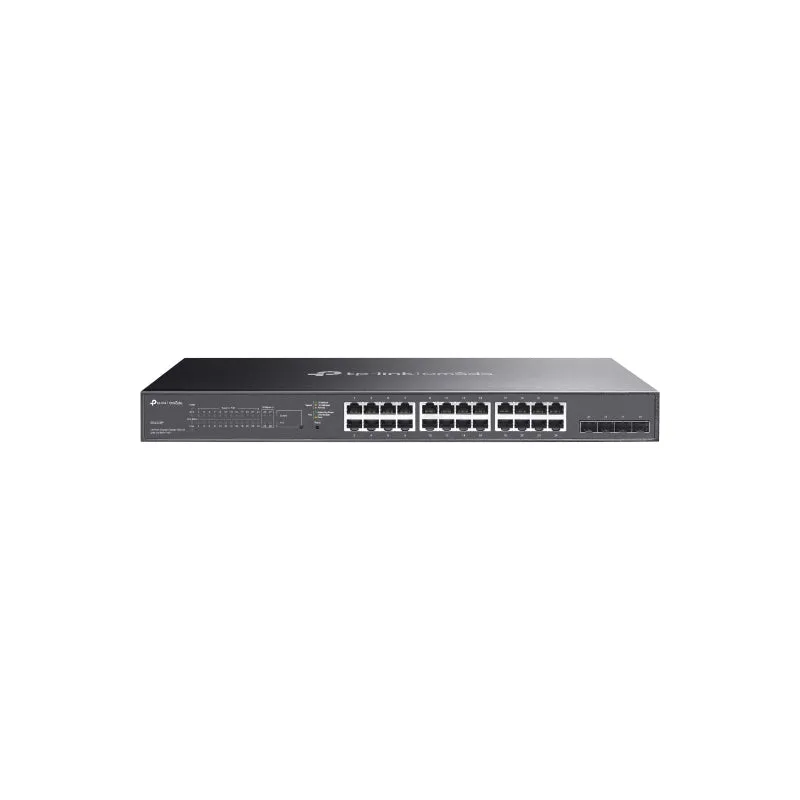

SG2428P, TP-Link | Omada 28-Port Gigabit Smart Switch with 24-Port PoE
Convenient Gigabit Switch with 24-Port PoE for a Complete Omada Network! An abundance of L2 and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs server to grant access only when valid user credentials are provided.
Features
Features
- 24× Gigabit 802.3af/at PoE ports and 4× Gigabit SFP slots
- 250 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Durable metal casing and rackmountable design
Specifications
Specifications
| HARDWARE FEATURES | ||
|---|---|---|
| Interface |
• 24× 10/100/1000 Mbps PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
|
| Fan Quantity | 2 | |
| Power Supply | 100-240 V AC~50/60 Hz | |
| PoE Ports(RJ45) | • Standard: 802.3at/af compliant • PoE Ports: 24 Ports (up to 30 W PoE Output per Port) • PoE Power Budget: 250 W* |
|
| Dimensions (W x D x H) |
17.3 x 8.7 x 1.73 in (440 x 220 x 44 mm) |
|
| Mounting |
Rack Mountable |
|
| Max Power Consumption |
301.1 W (110 V/60 Hz) (with 250 W PD connected) |
|
| Max Heat Dissipation |
1027.40 n BTU/hr (110 V/60 Hz) (with 250 W PD connected) |
|
| PERFORMANCE | ||
|---|---|---|
| Switching Capacity | 56 Gbps | |
| Packet Forwarding Rate | 41.66 Mbps | |
| Mac Address Table | 8 K | |
| Packet Buffer Memory | 4.1 Mbit | |
| Jumbo Frame | 9 KB | |
| GENERAL |
||
|---|---|---|
| Certification | CE, FCC, RoHS |
|
|
Package Contents |
|
|
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. | |
| Environment |
Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
|
Additional Information
Ethernet Switch Accessories
An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our switches please visit our overview page. Our Switches can be combined with a wide array of products.
What's In The Box
What's In The Box
- Qty 1 - SG2429P
- Qty 1 - Power Cord
- Qty 1 - Installation Guide
- Qty 1 - Resource CD
- Qty 4 - Rubber Feet
