Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered!

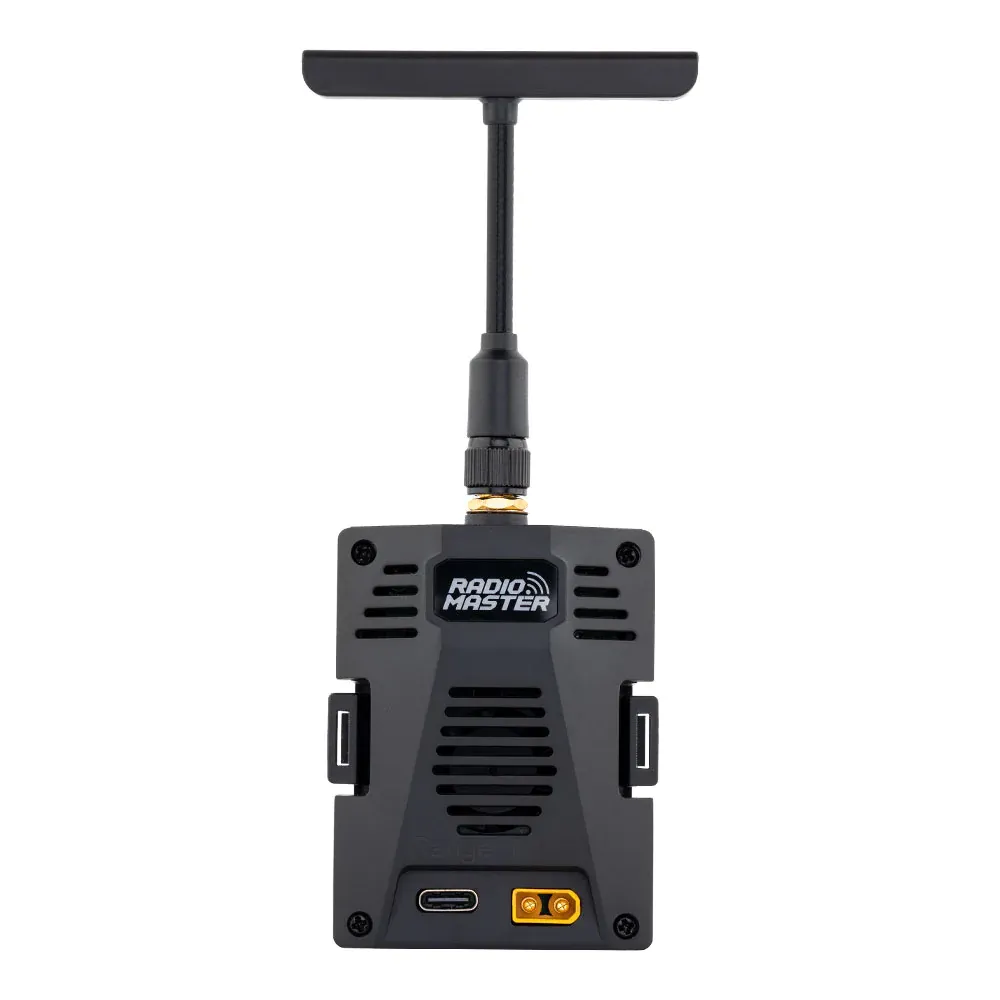

Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

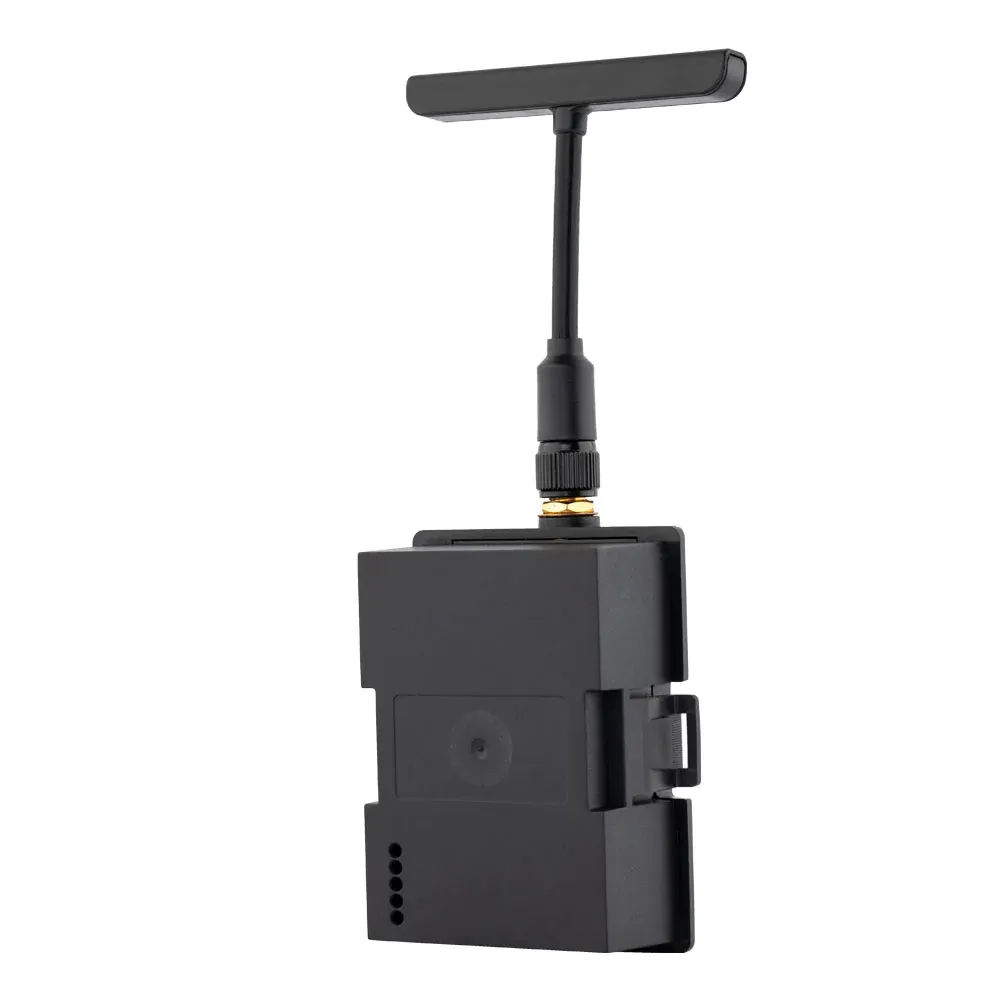

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the modules.

Features

• High-efficiency cooling system

• Up to 1Watt Power output
• Wifi and Bluetooth support
• Packet rates up to F-1000Hz
• T-antenna included

• With Micro connector, supports , and TX12 MKII radio and more.

Specifications

• Regulatory Domain: ISM2400
• MCU: ESP32(main), ESP8285(aux,as ESP backpack)
• RF chip: SX1281IMLTRT
• Frequency Range: 2400 MHz - 2480 MHz
• Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
• Minimum receiver refresh rate: 25Hz
• RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
• Wifi Support: Yes
• Bluetooth support: Yes

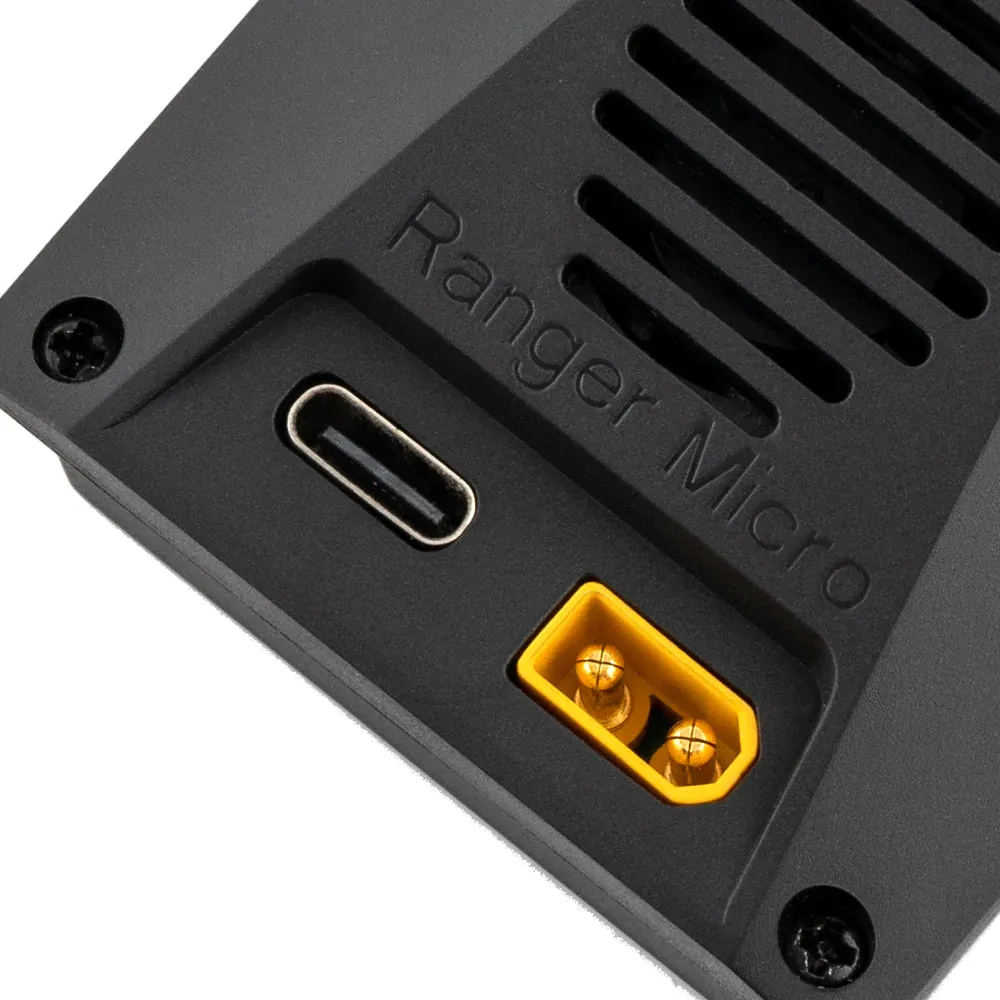

• XT30 Power supply voltage: DC 6V - 16.8V
• Weight: 48g (with antenna) / 39g (without antenna)
• Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)

Includes

• 1x Ranger ELRS 1W 2.4GHz Micro TX Module
• 1x T Antenna
