OAK-1 paired with a wide field of view camera module capturing more in one shot, for scenarios where large area coverage comes handy.

Key Features:

• Either 120° or 150° DFOV depending on variant chosen
• 4 TOPS of processing power (1.4 TOPS for AI)
• Dimensions: 36x54.5x27.8 mm; Weight: 53.1g
• USB2 / USB3 for power delivery and communication

Description

The OAK-1 W is an 12MP AI camera that features on-device and capabilities. It can capture high-resolution images, run custom AI models, and perform advanced computer vision tasks. It uses USB-C for both power and USB3 connectivity.

Wide FOV allows you to capture more area in one shot, which can be especially useful for:

• Multi-camera setup, to reduce the number of cameras needed to cover the whole area
• AMRs, to cover larger area and to get more features for localization and 3D mapping - see for more information
• Object tracking/counting, for example vehicle or people counting over a larger area

For a smooth getting started experience with the USB camera, we recommend following .

• 4 TOPS of processing power (1.4 TOPS for AI - )
• Run any AI model, even custom architectured/built ones (models need to )
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via node, , . You can also
• Object tracking: 2D tracking with node

• Power consumption up to 5W. For more information check the technical specification.

• Industrial grade aluminum housing with Front Gorilla Glass

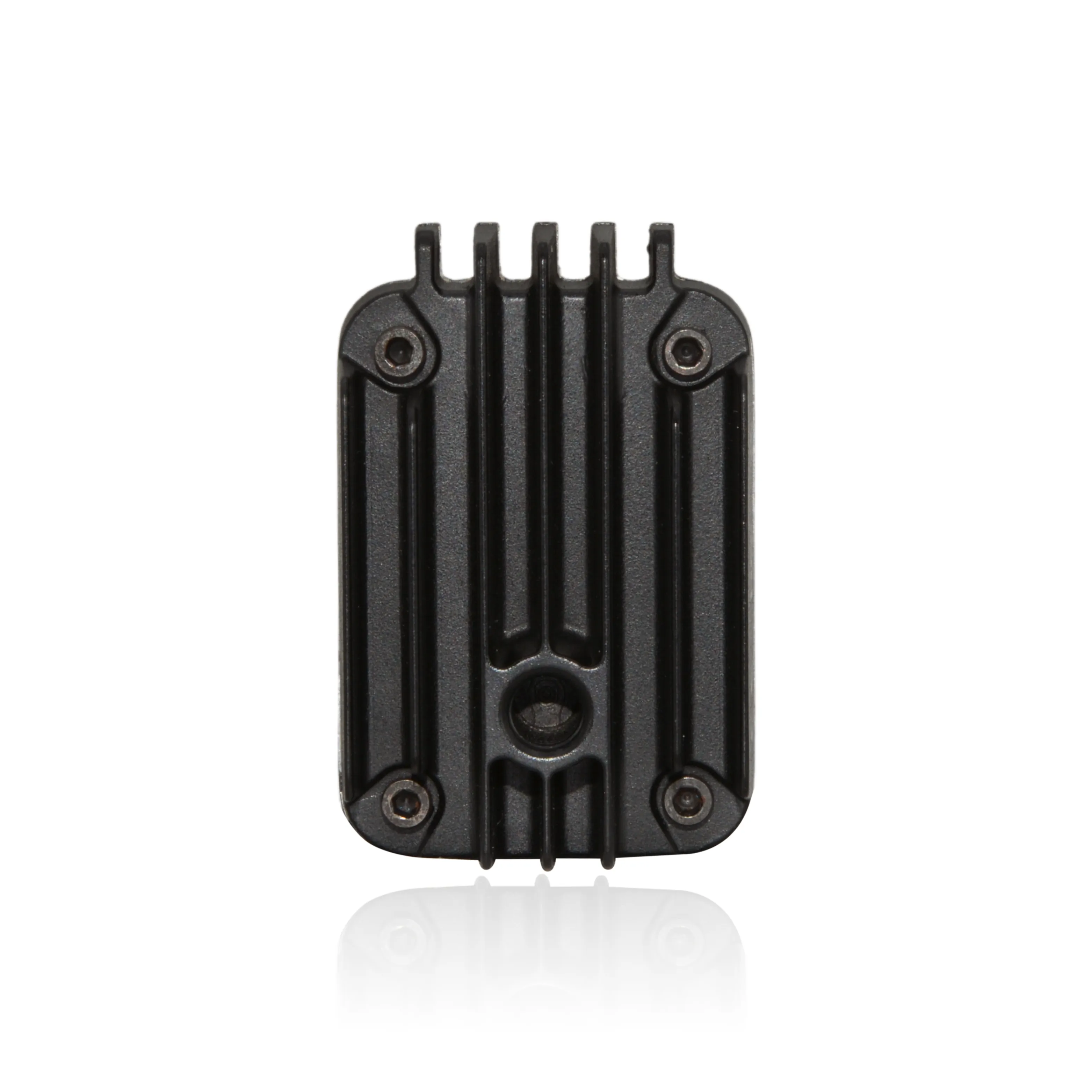

• 1/4" tripod mount

• Dimensions: 36x54.5x27.8 mm
• Weight: 53.1g

Product Diagram

Technical Specifications

Camera Specifications

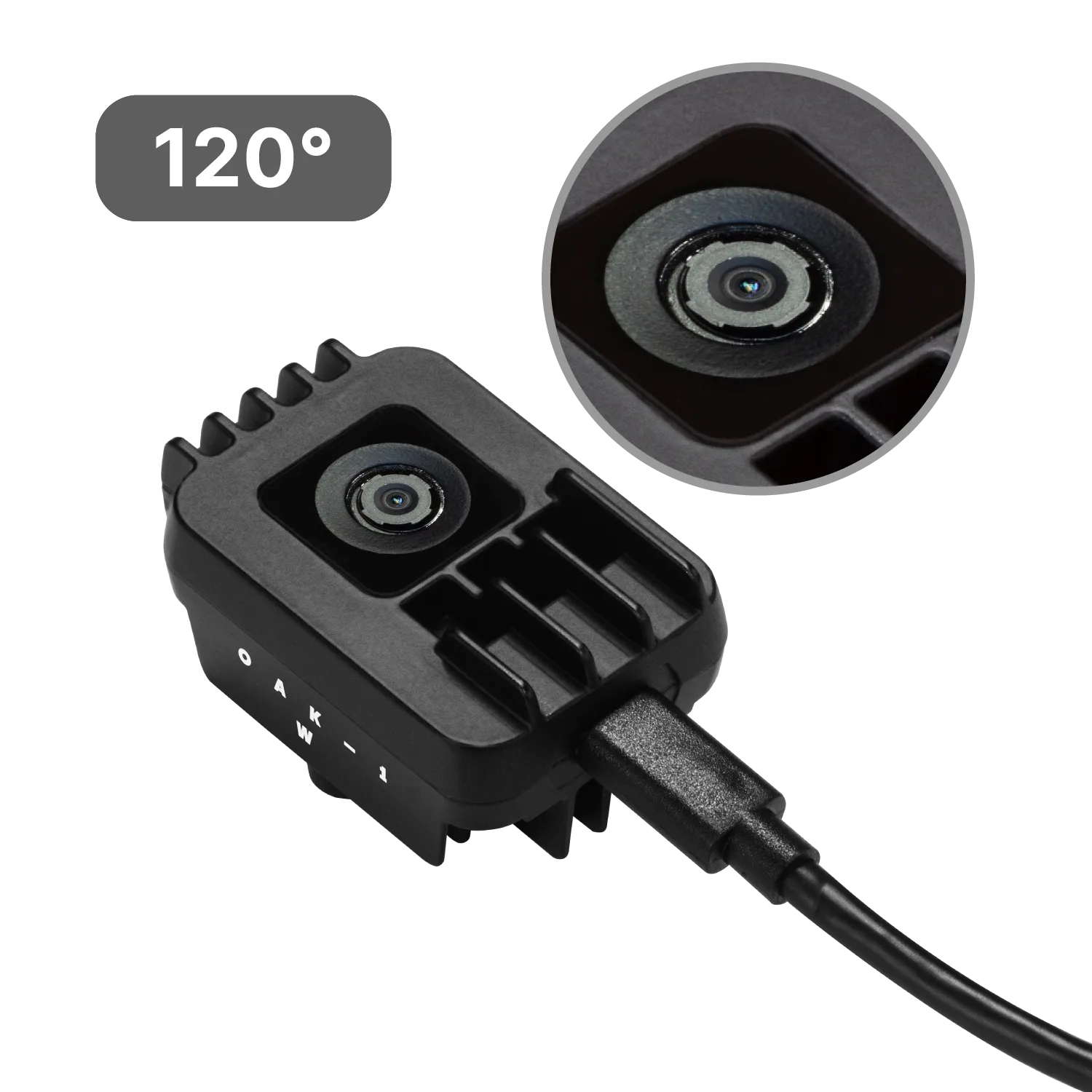

There are two variants available for this camera. 12MP rolling shutter camera with DFOV of 120° or 1MP global shutter camera with 150° DFOV.

Power and connectivity

Camera offers USB-C (USB 3.2 Gen1, 5 Gbps) for power and connectivity.

Most of the power is consumed by the RVC2, so the power consumption mostly depends on the workload of the VPU:

• Base consumption camera streaming: 2.5W - 3W
• AI subsystem consumption: Up to 1W
• Stereo depth pipeline subsystem: Up to 0.5W
• Video Encoder subsystem: Up to 0.5W

So the total power consumption can be up to ~5W if you are using all the features at 100% at the same time. To reduce the power consumption, you can reduce FPS of the whole pipeline - that way, subsystems won’t be utilized at 100% and will consume less power.

Operating characteristics

The ambient operating temperature of RVC2 based devices is between -20°C and 50°C when fully utilizing the VPU. To find out more, see our

Package content

The package contains:

• OAK-1 Lite camera
• Cable USB-CA-1m
• Cleaning cloth
