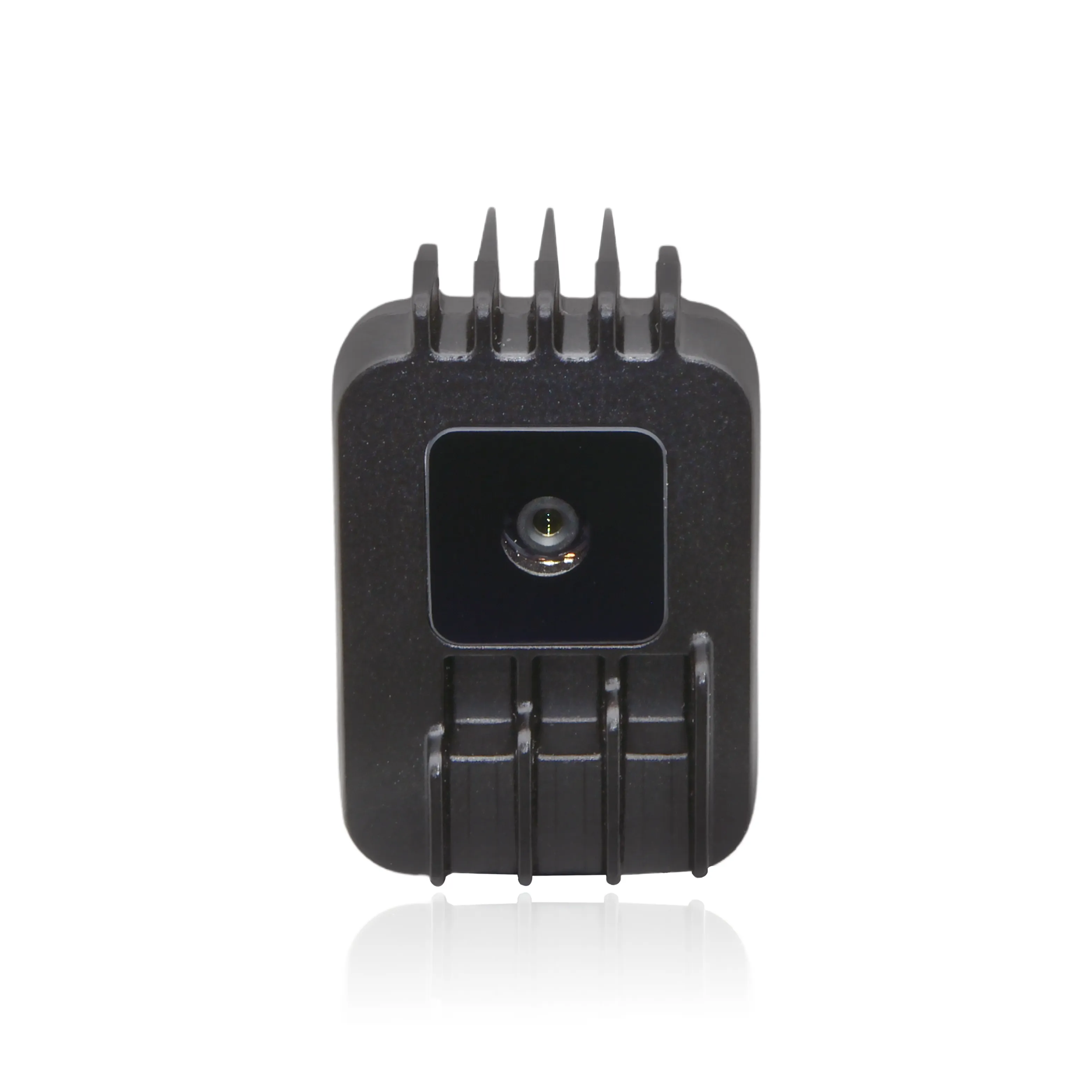

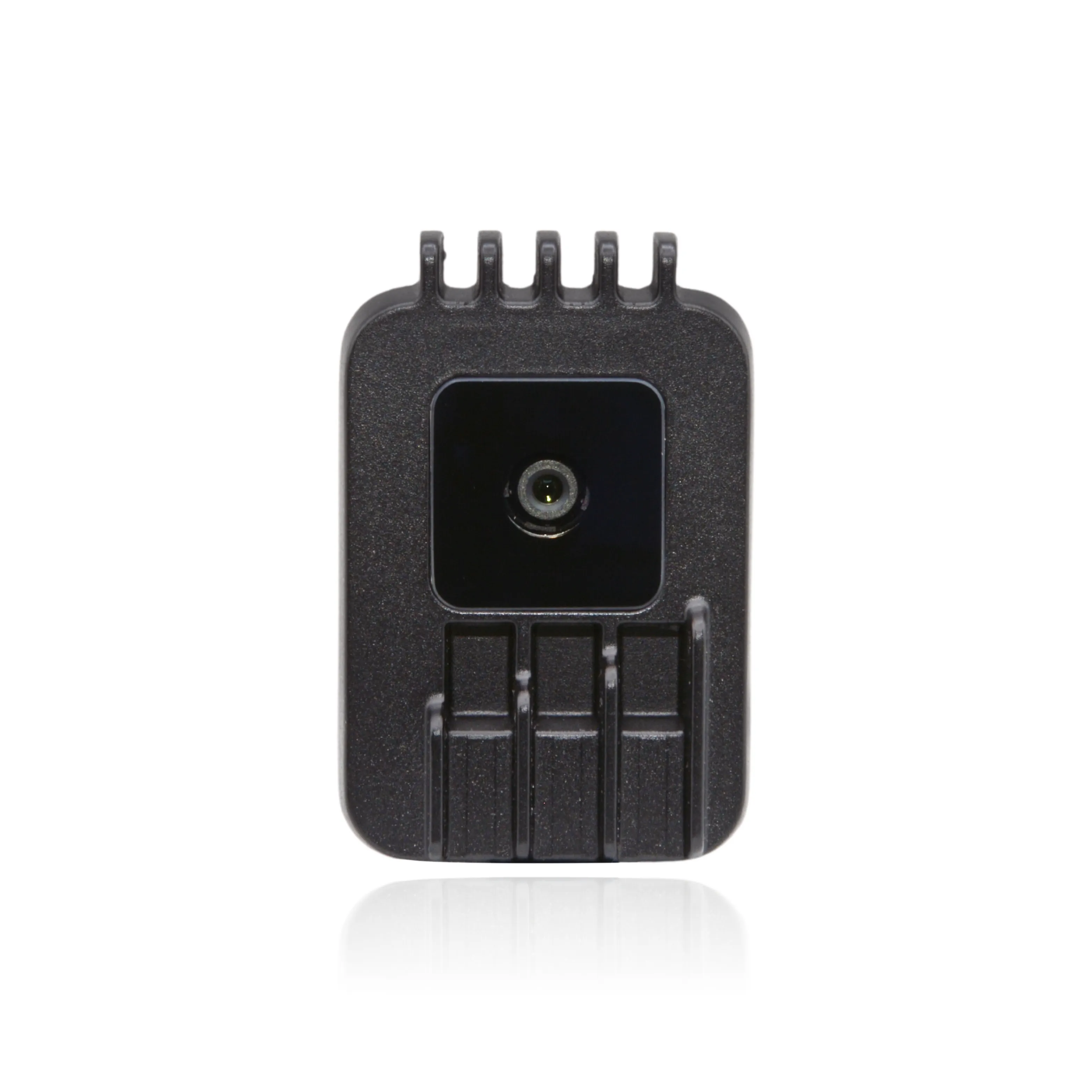

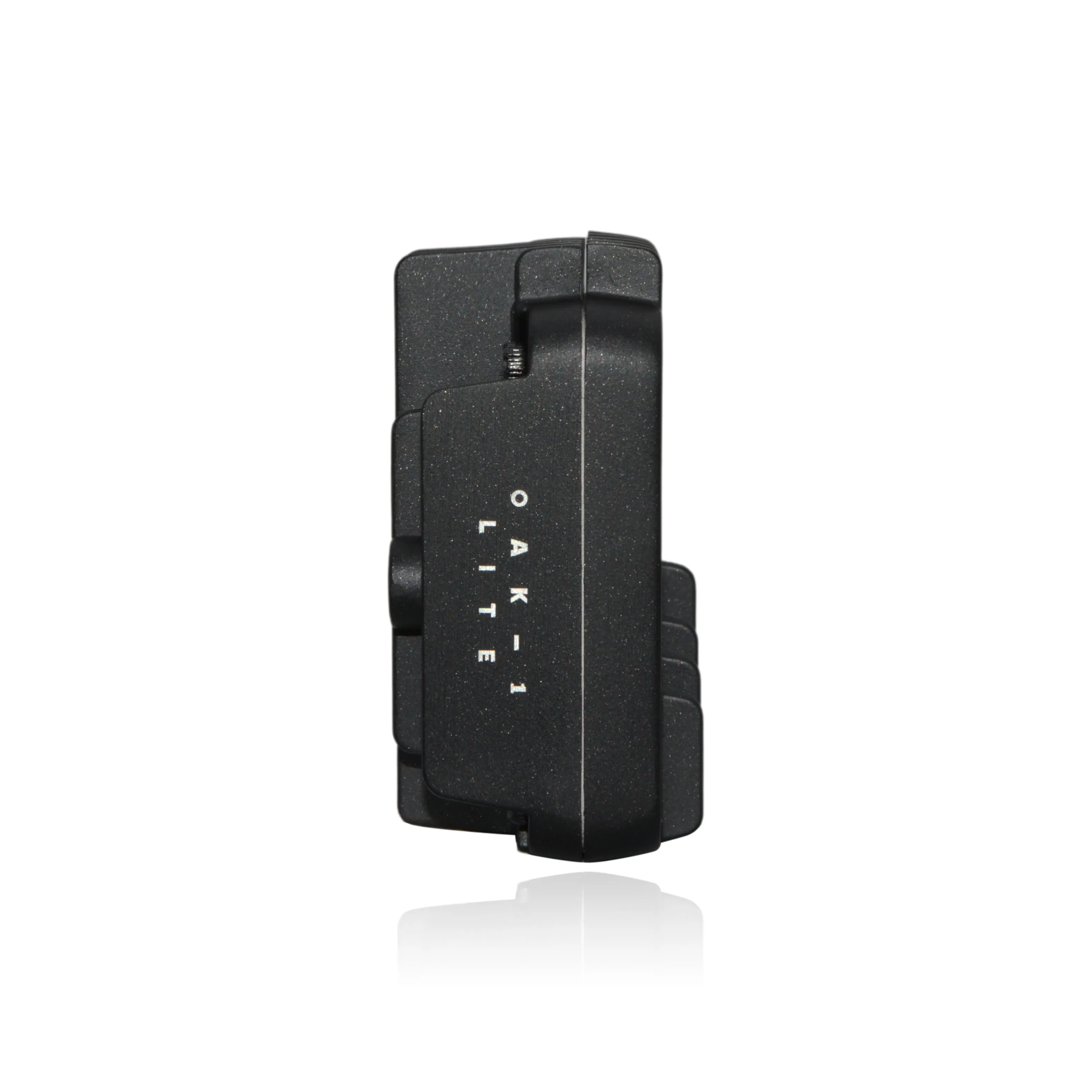

Name: OAK-1 Lite
SKU: 549427

Lightweight version of device employing a different, 13MP camera module. Available both in fixed-focus and auto-focus versions.

Key Features:

13 Mpix RGB camera available in auto-focus and fixed-focus variants
4 TOPS of processing power (1.4 TOPS for AI)
Dimensions: 36x54.5x27.8 mm; Weight: 53.1g
USB2 / USB3 for power delivery and communication

Description

The OAK-1 Lite is a 13MP AI camera that features on device and capabilities. It can capture high-resolution images, run custom AI models, and perform advanced computer vision tasks. It uses USB-C for both power and USB3 connectivity.

For a smooth getting started experience with the USB camera, we recommend following .

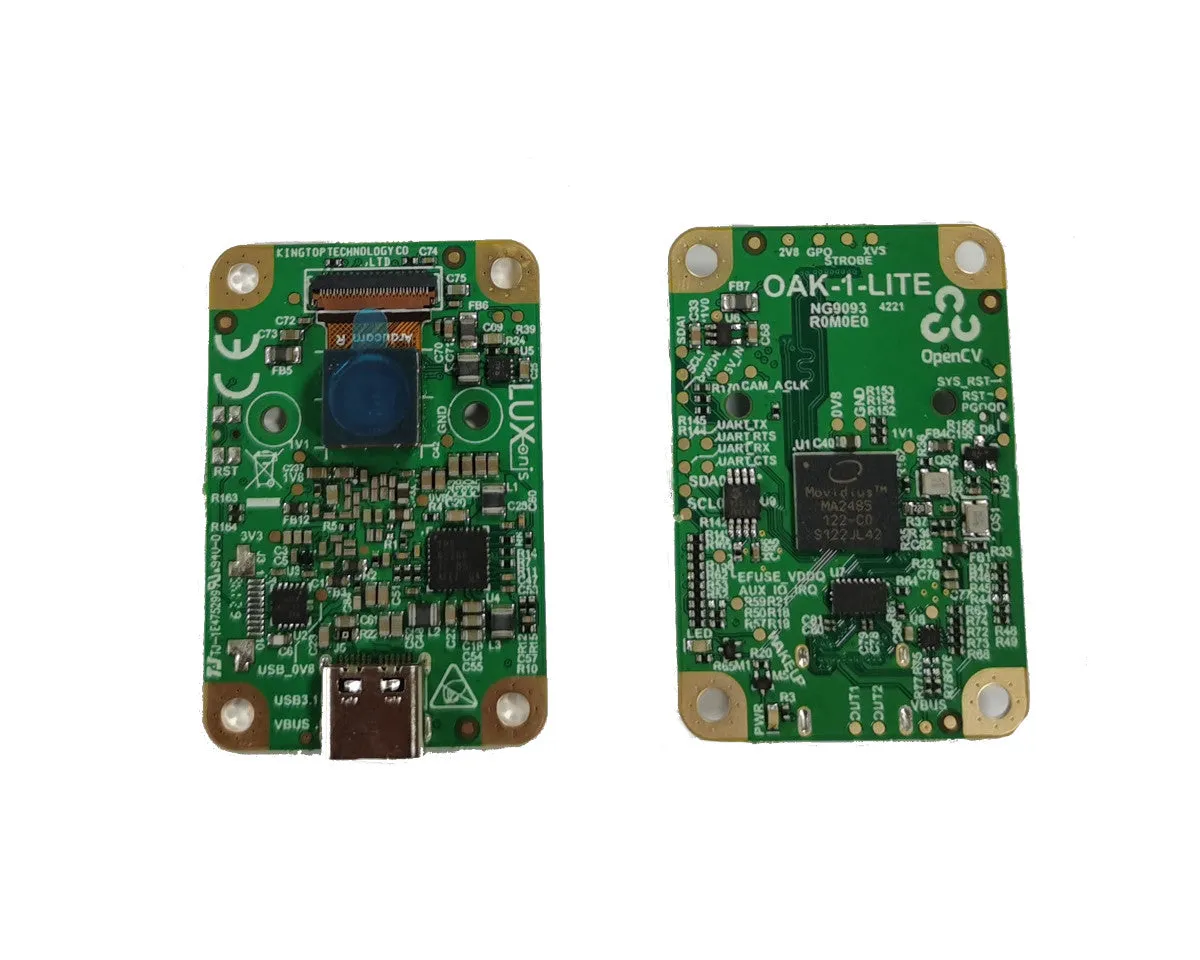

RVC2 architecture on-board features:

4 TOPS of processing power (1.4 TOPS for AI - )
Run any AI model, even custom architectured/built ones (models need to )
Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
Computer vision: warp (undistortion), resize, crop via node, , . You can also
Object tracking: 2D tracking with node

Power consumption up to 5W. For more information check the technical specification.

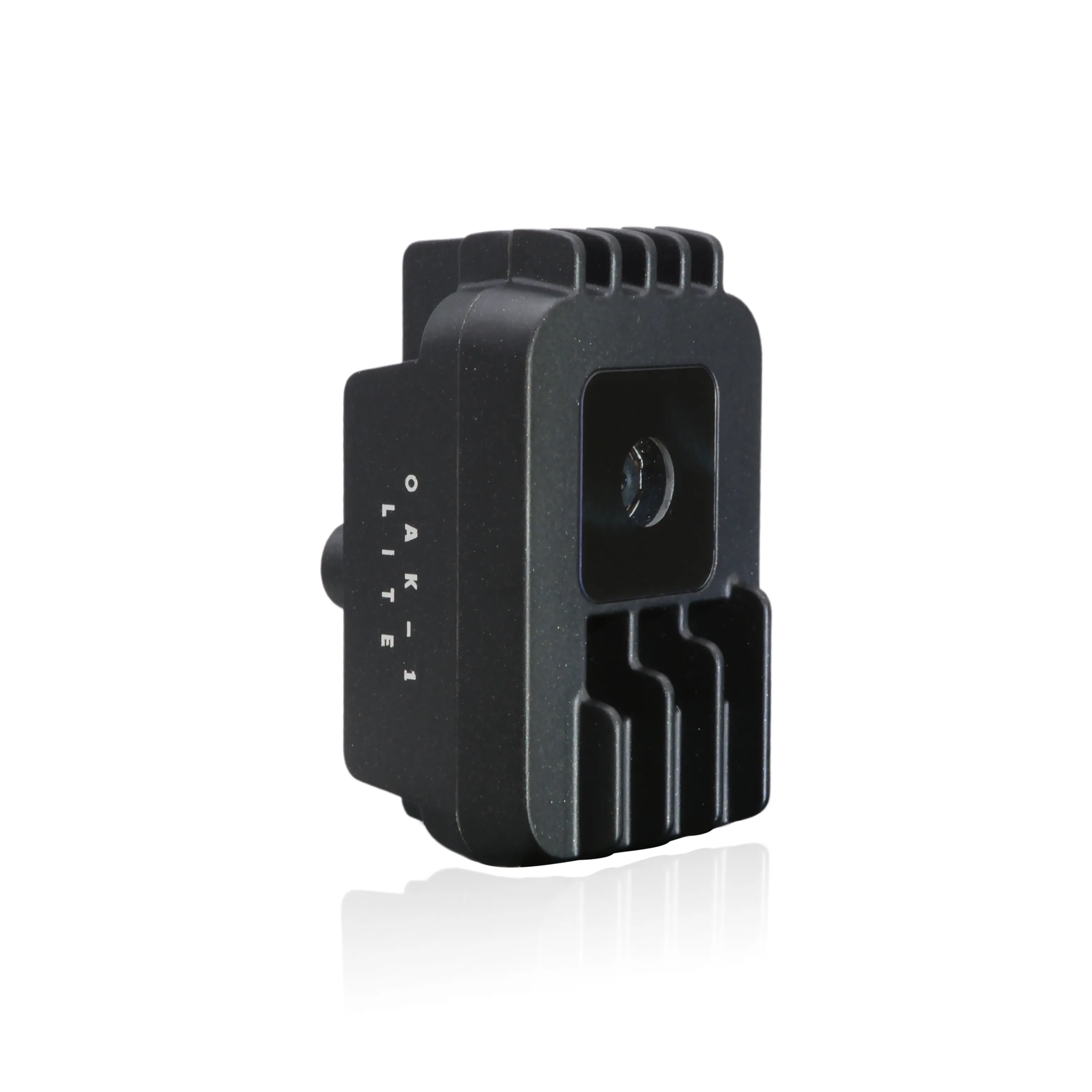

Industrial grade aluminum housing with Front Gorilla Glass

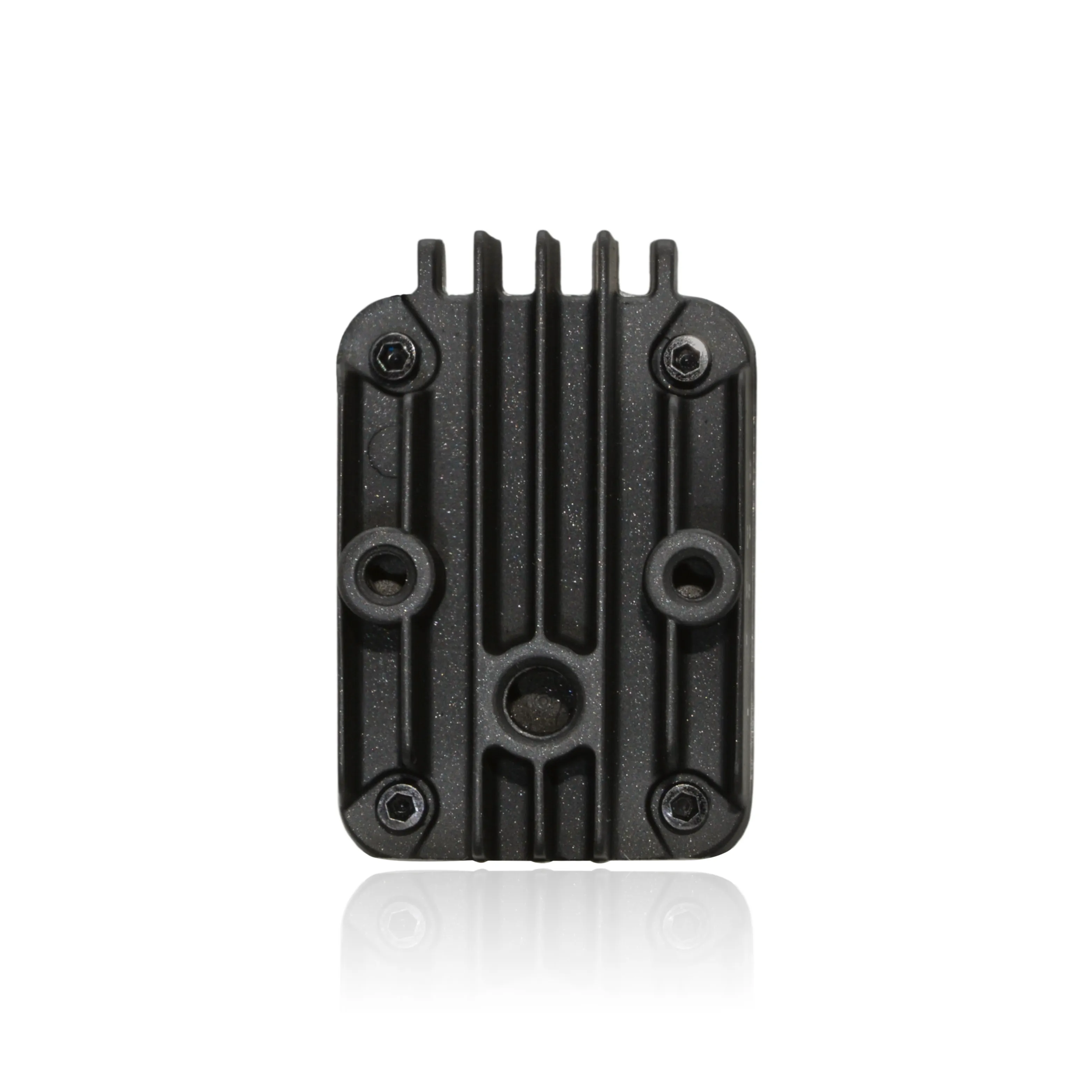

1/4" tripod mount

Dimensions: 36x54.5x27.8 mm
Weight: 53.1g

Product Diagram

Technical Specifications

Camera Specifications

The OAK-1 Lite is available in two variants: Fixed-Focus and Auto-Focus. These variants differ only in the configuration of the center color camera. The Fixed-Focus variant has the lens fixed in place mechanically, whereas the Auto-Focus has an electromagnet that controls the lens position dynamically. Both variants can clearly see objects 50 cm and beyond.

Auto-Focus cameras are recommended for close objects between 8 cm to 50 cm of the device (see ). They can also be manually set to a specific focus position utilizing the DepthAI API.
Fixed-Focus cameras are recommended for heavy-vibration applications, such as drones, lawnmowers, or vehicles (see ).

If you need better sensor, you can choose IMX378 based or based on 32MP IMX582.

Sensor Specifications:

Variant	Auto-Focus	Fixed-Focus
Sensor	(PY047)	(PY062)
DFOV / HFOV / VFOV	81° / 69° / 54°	81° / 69° / 54°
Resolution	13MP (4208x3120)	13MP (4208x3120)
Focus	AF: 8cm - ∞	FF: 50cm - ∞
Max Framerate	60 FPS	60 FPS
Spectral Range	Visible only	Visible only
Shutter Type	Rolling	Rolling
Sensor size	1/3.1”	1/3.1”
F-number	2.2 ± 5%	2.2 ± 5%
Effective Focal Length	3.37mm	3.37mm
Pixel size	1.12µm	1.12µm

Power and connectivity

Connectivity

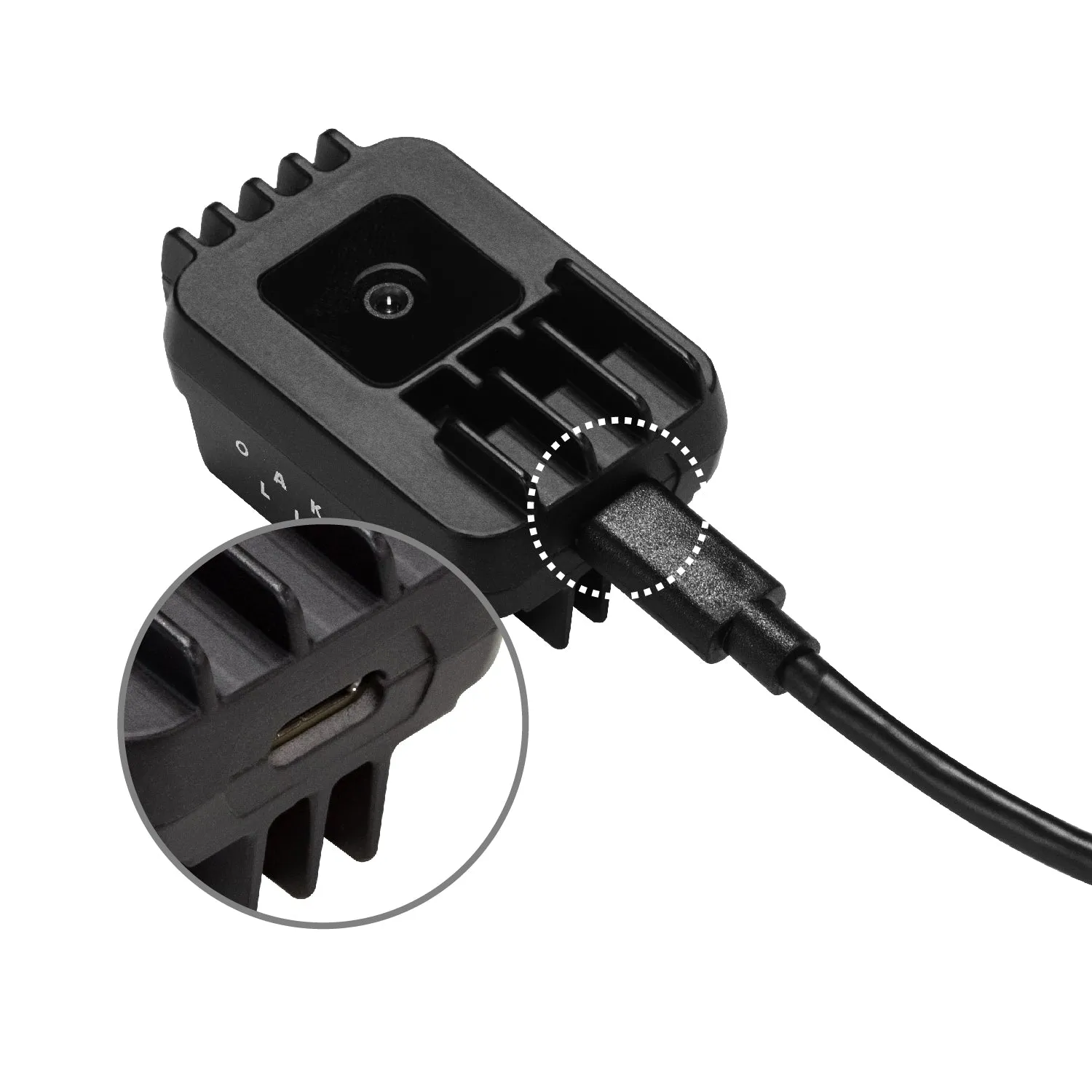

Camera offers USB-C (USB 3.2 Gen1, 5 Gbps) for power and connectivity.

Power consumption

Most of the power is consumed by the RVC2, so the power consumption mostly depends on the workload of the VPU:

Base consumption camera streaming: 2.5W - 3W
AI subsystem consumption: Up to 1W
Stereo depth pipeline subsystem: Up to 0.5W
Video Encoder subsystem: Up to 0.5W

So the total power consumption can be up to ~5W if you are using all the features at 100% at the same time. To reduce the power consumption, you can reduce FPS of the whole pipeline - that way, subsystems won’t be utilized at 100% and will consume less power.
