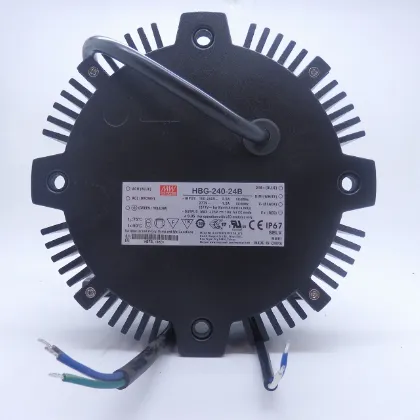

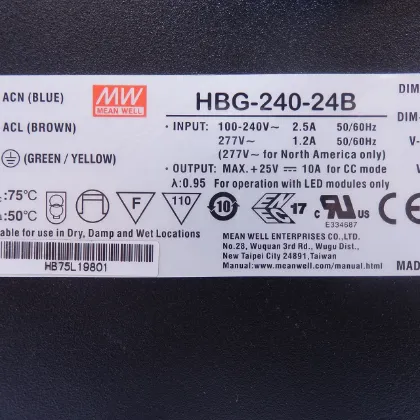

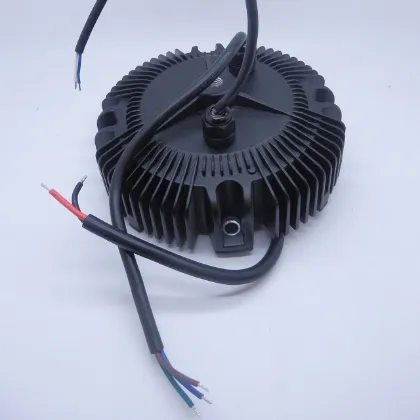

This is as Mean Well 10A 24V 240W Constant Voltage / Current AC/DC LED Driver. Its model number is HBG-240-24B. HBG-240 Series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90 ~ 305 VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24Vand 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40 C° - 75 C° case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies to provide the optimal design flexibility for LED lighting system.
Specifications:
- Configuration: Sealed
- Input Voltage: 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC ; 277 VAC
- Input Voltage Range: 100-305 VAC
- Mounting Type: Stud Mount
- Number of Outputs: 1 Output
- Operation: Switching
- Output Current: 10 A
- Output Power: 240 W
- Output Voltage: 24 VDC
- Primary Type: AC-DC
- Series: HBG-240 Series
- Type: LED Driver
