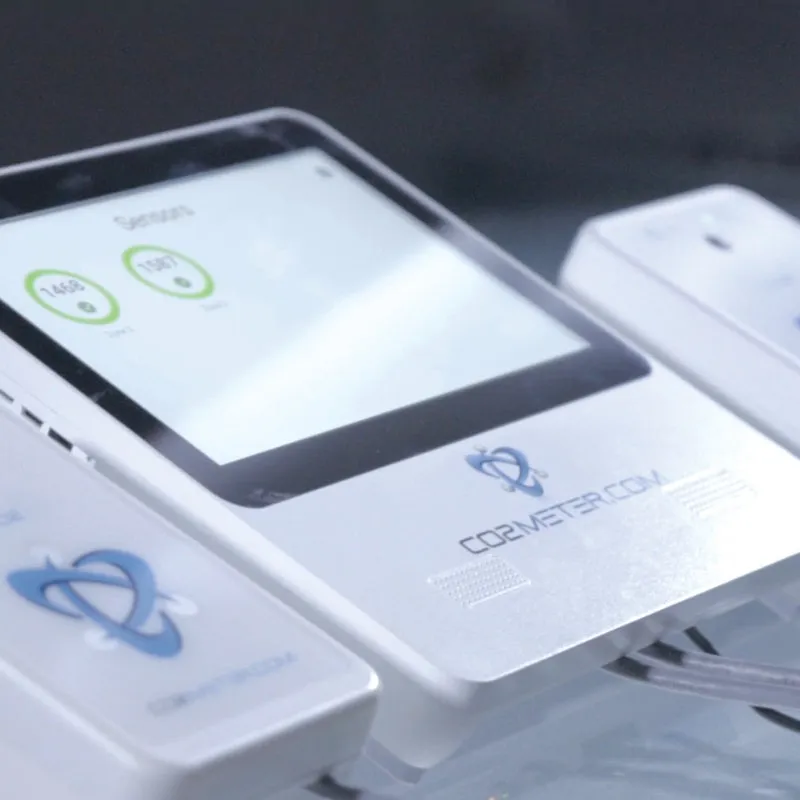

The Display Tablet for Multi Gas Safety System is designed to monitor carbon dioxide levels and detect leaks across multiple locations from a single central display unit. The system is a true "plug-and-play" system for your application and requirements. This device is the foundation of our .
The advantage of a tablet-based system is that it provides centralized control of CO2 or oxygen monitoring. You can configure groups of sensors to instantly show where a gas alarm happens in a large facility.
To get started, you can select individual system components below or who can help you design a custom system for your application.
Features
- Add Additional CO2 or Oxygen Sensors as Your Business Grows
- Add Additional Control Relays, Strobes or Horns
- All Alarm and Notification Settings can be Customized
- Meets NFPA, IFC, and NBIC Requirements | OSHA and NIOSH TWA standards
- Meets all local municipality inspection codes and requirements
System Components

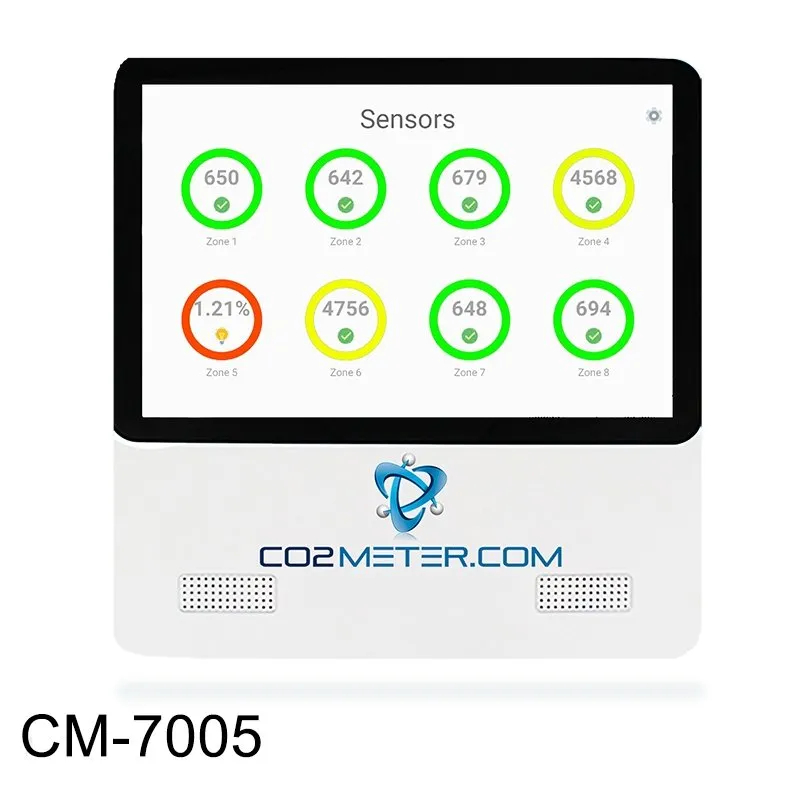

- Tablet for Multi Gas Safety System shown here (CM-7005)
Note: Software v2.3.15 update is critical for proper operation.
Specifications
- Measurement interval: 2 seconds (0.5Hz)
-
Operating Temperature: 32-122°F (0-50°C)
-

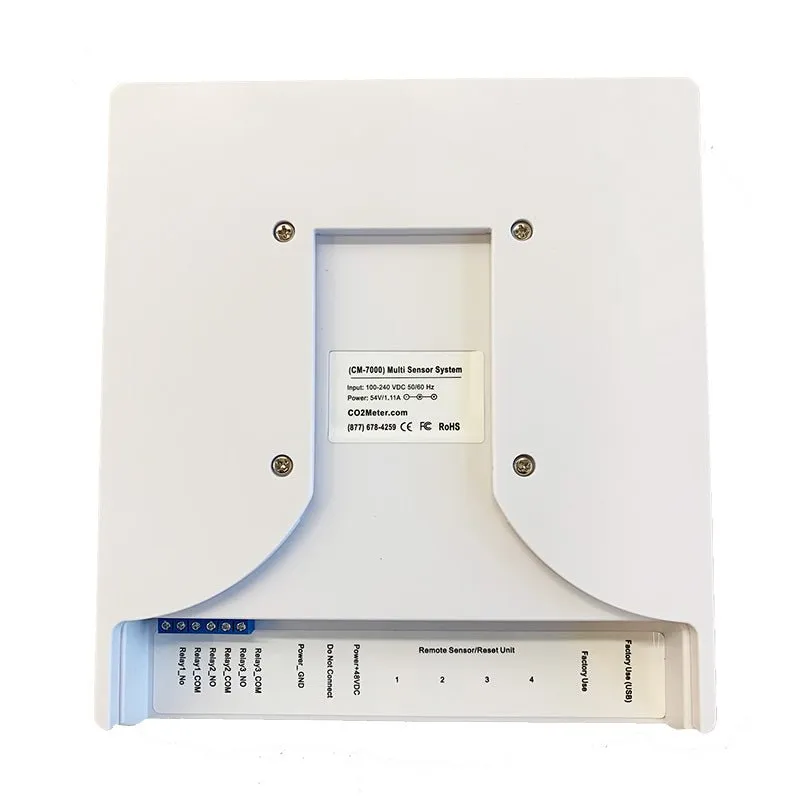

Connections: Input / Output / Strobe - CAT5 8 pin connector
Electrical
- Wall Power Plug: 110-220 VAC 50/60 Hz to 48 VDC Power Adapter
- Power Input: 48-58 VDC
- Power Consumption: 30W
- Connections: Input / Output / Strobe - CAT5 8 pin connector
-
48-58VDC hard-wired power option
- Can be connected to a UPS for Battery Backup
- Max distance any sensor or horn/strobe can be from the tablet is 250 ft. without additional POE devices. for more details.
Connectivity
- With proper setup, the CM-7005 tablet can control an array of CO2, oxygen, and remote relay components.
- Because of power requirements, the only limitation on system size is that if you need more than 5 CM-7004 Horn Strobes per port, more than 12 CM-7004 Horn Strobes per tablet, or need more than 250 ft. range, you must use our Power Over Ethernet Adapters.
- To configure large installations, please .
Warranty
- 1 year - See .
Documents
Software
Required Firmware Update - released June 2023
The most recent firmware of the CM-7000 v2.3.15 can be downloaded using the link below.
All CO2 Multi Sensor Systems are required to update for optimal operation and functionality:
- Step 1.
- Step 2.
Accessories
The Multi Gas Safety System starts with the CM-7005 tablet. Click on any of the add-on items it can control for more information.
- ) - Provides real-time CO2 readings for multiple sensors that are controlled by the CM-7005 CO2 multi sensor safety system tablet.
- ) - Provides real-time O2 readings for multiple sensors that are controlled by the CM-7005 CO2 multi sensor safety system tablet.
- ) - Triggers third-party devices like an exhaust fan, building management system, fire panel or remotely notify security of a high CO2 alarm. Includes CBL-7002 below.
- ) - Audible and visual strobe alarm used for interior placements.
- )- Audible and visual strobe alarm for exterior placements.
- ) - Remote display that monitors all or a group of CO2 sensors.
- - Provides a flashing indicator and audible alarm. Changes colors as the alarm level changes.
- - Enables easy connectivity between the Remote Relay CM-7002, Strobe Tower CM-1026-5 or any external device that can be triggered by a relay.
- - 3/8 inch connector on electronic solenoid enables remote shut off during gas leak. Plugs into Remote Relay CM-7002 or Main Tablet relay.
- - 1/2 inch connector on electronic solenoid enables remote shut off during gas leak. Plugs into Remote Relay CM-7002 or Main Tablet relay.
- Calibration Gas - Because of MDOT regulations, calibration gases must be shipped from a certified gas supplier. You can order calibration gas from your local supplier or you can order the following products from CalGasDirect.com
