Designed to deliver quality, efficiency, and ruggedness, TOMAR's 20" 970 Series NFPA LED Brow Light meets NFPA requirements. Equipped with low current switching technology and the ability to dim, this light bar is a perect example of reliability and energy efficiency.

Light Bar Configuration

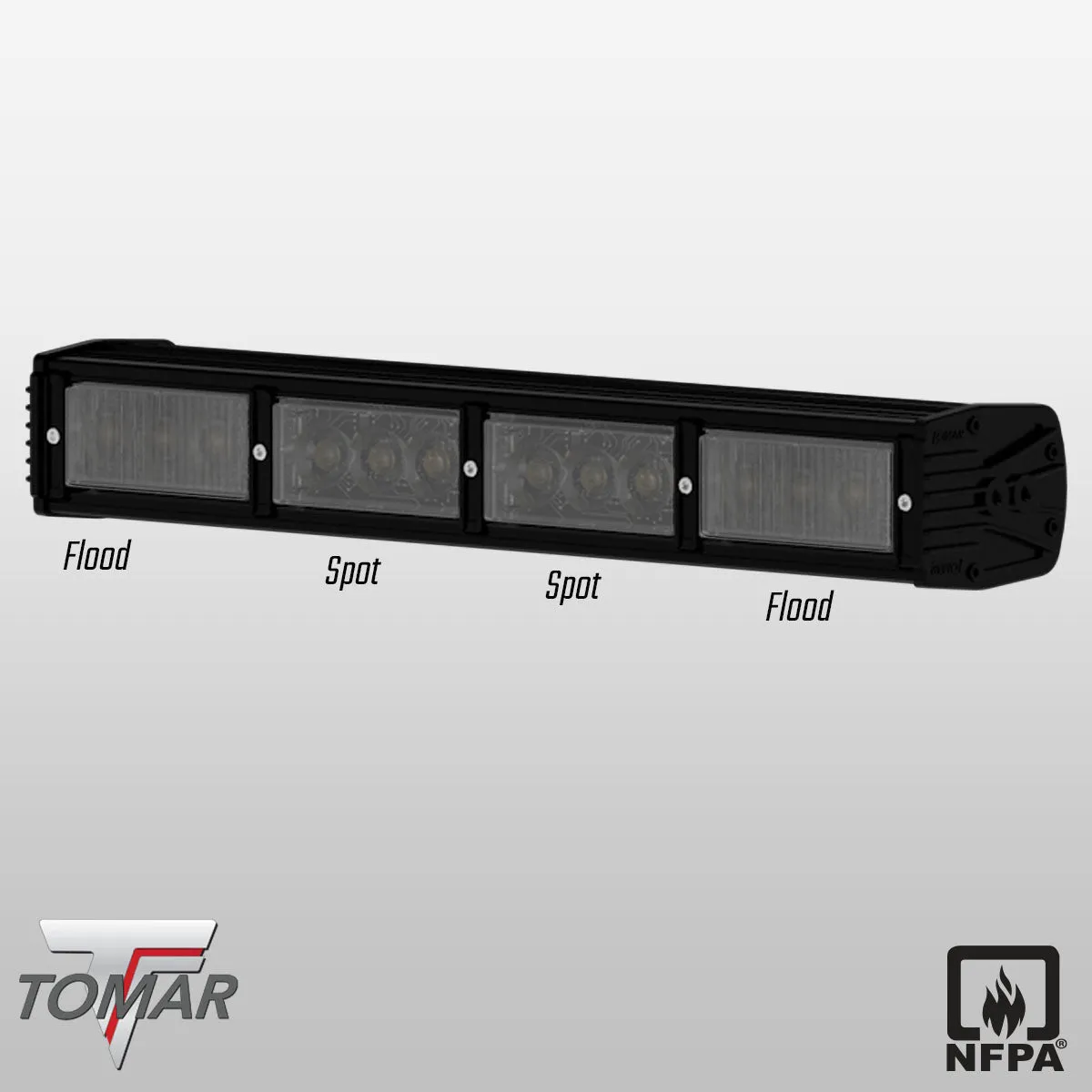

• Number of Modules: 4 (2 Flood and 2 Spot)

• Number of LEDs: 12
• Nominal length (in.): 20"

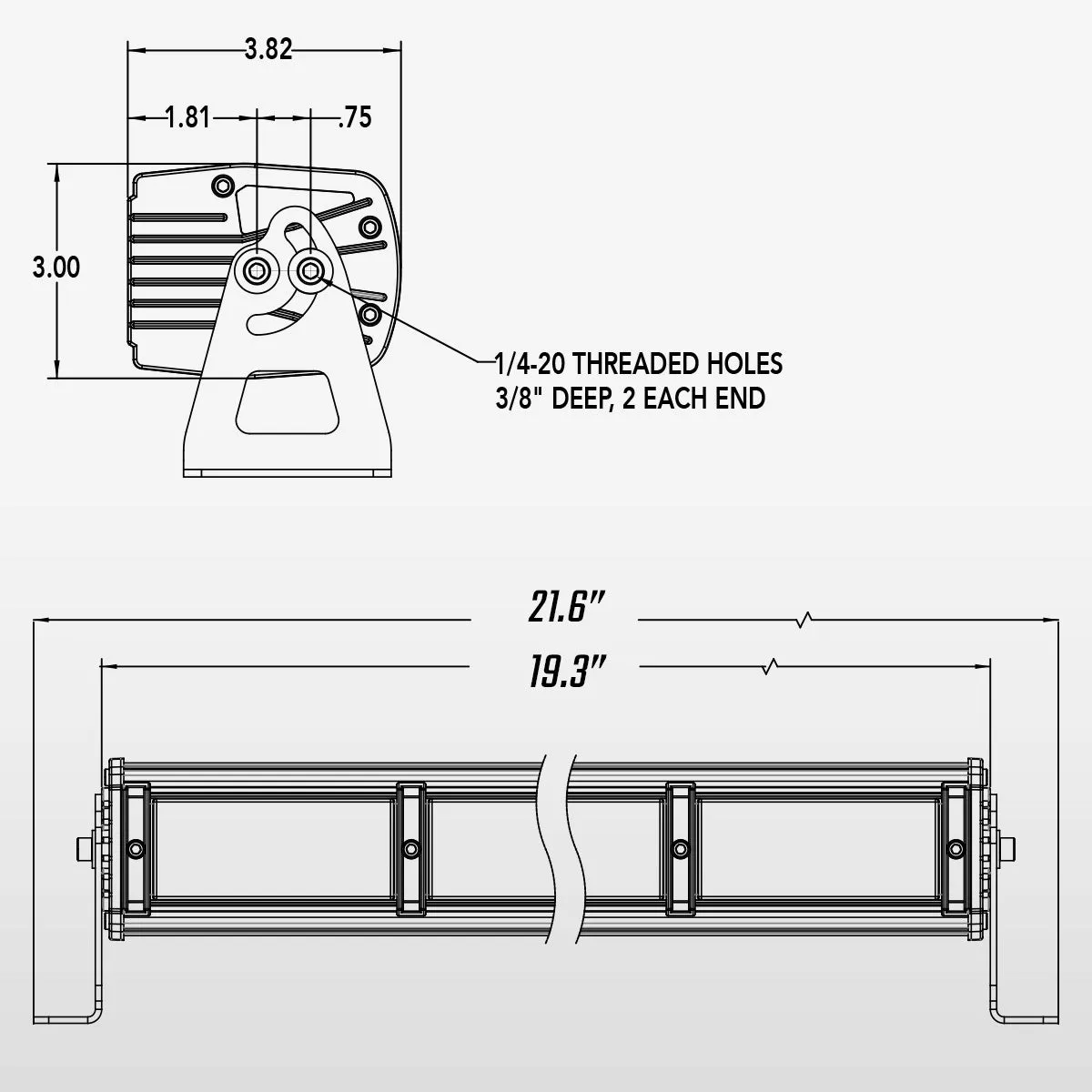

• Length with housing (in.): 19.3"
• Length with supplied brackets (in.): 21.6"
• Watts: 115.9
• AMPS: 8.4
• Waterproof - IP68 and IP69K rate, immersion tested up to 3 meters
• Operating temperature: -40°C to 60°C

KEY FEATURES

• Meets NFPA requirements
• SAE-J575 Vibration Tested
• Features 4 modular field-interchangeable led light modules
• Clear Vision Optics meet SAE-J595 for directional flashing optical warning devices
• Low current switching eliminates the need for relays
• Dimming capability
• Field-interchangeable lamp modules for customizable beam spread
• Individual activation of required running lights on properly configured models
• SOS distress flash pattern
• Operating temperature: -40°C to 60°C
• Heavy-duty 6063-T5 Aluminum Heatsink for maximum intensity over long periods
• Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.
